MP-500V Power Supply | Electrophoresis Power Supply

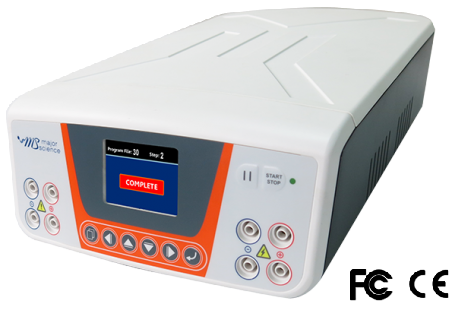

The MP 500V power supply is a microprocessor controlled power supply to that covers the broadest range of applications.

MP 500V offers constant voltage, constant current or constant watt output. Pause/resume run capability during timed or continuous operation is allowed. MP 500V is a fully programmable model, offering up to 6 multi-step settings and saving up to 30 programs, and capable for running 4 electrophoresis systems simultaneously. Its design provides a compact and modern stackable case, and a 2.6” LCD screen, showing all the running / setting conditions. Safety devices include no load detection, leakage detection, sudden load change detection, over temperature protection, and over load detection.

 Features:

  • 500V maximum voltage
  • 800mA maximum current
  • 300W maximum power
  • Four pairs of outlet terminals
  • Timer with alarm function
  • Advanced safety device design
  • Compact size
  • Stackable case
  • Wide applications for DNA, RNA and protein electrophoresis

Specifications:

 Cat. No.  MP-500V
 Display  2.6”LCD
 Output Voltage / Inc  5 - 500V / 1V
 Output Current / Inc  1 - 800mA / 1mA
 Output Power / Inc  300W/1W
 Output Type  Voltage or current or power
 Controller  Microprocessor controller
 Program Storage  30 programmed files
 Program Multi-Step  Up to 6 steps
 Terminal Pairs  4 Pairs
 Timer   Constant mode:1~9999 minutes with alarm, continuous
 Programmable mode: 1~999 minutes with alarm, continuous
 Pause Function  Yes
 Safety Device       No load detection
 Leakage detection
 Sudden load change detection
 Over temperature protection
 Overload detection
 Shrouded plug and sockets
 Crossover  Yes
 Operation Temperature 4゚C to 40C
 Unit Dimension (W x L x H) 7.48" x 12.0" x 3.74" (190 x 305 x 95mm)
 Construction Material  Flame retardant ABS plates and aluminum
 Weight  Approx. 5.5 lb (2.5kg)
 Rated Voltage  100V - 240V
 Stackable  Yes
