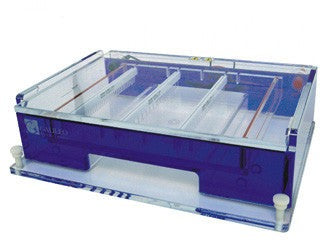

ExpressCast 20cm x 25cm Gel Electrophoresis System

Save 10%

Configuration: Unit Only
Price:
Sale price$710.10 Regular price$789.00

Looking for ExpressCast 20cm x 25cm Gel Combs and Trays?

Shop Accessories

Contact Us

Description

Galileo Bioscience catalog
Horizontal Large Gel Electrophoresis System for 20cmW x 25cm gel. Includes 20cm x 25cm UVT Gel Tray w/ end gates & (1) 16, (1) 24 and (1) 36 Tooth, 1.5 mm thickness. Includes four year warranty.

The 81-2025 is a medium capacity system. With a maximum run length of 25cm, the unit can provide high resolution of complex analytes. Or, fitted with maximum capacity combs in all of the tray's 6 comb slots, the unit can handle up to 168 samples. The 2025 features the Galileo ExpressCast gel casting system for quick, tape-free gel casting and includes a built-in bubble level and leveling screws for convenient level adjustment. You may choose from a wide variety of comb options to customize your order.
  • Heavy duty lower buffer chamber
  • Interlock safety lid with attached leads
  • End gated 20cm wide x 25cm long ExpressCast™ UV-transparent gel tray with built-in fluorescent ruler and 6 comb slots.
  • One 1.5mm x 16 tooth combs, one 1.5mm x 24 tooth combs, one 1.5mm x 36 tooth combs
Galileo automatic buffer recirculation reduces detrimental ion and pH gradients in your buffer, encourages even migration of nucleic acids, and is ideal for long running gels. Buffer recirculation can also prevent glyoxalated RNA from dissociating in the presence of ion gradients.
Gel Electrophoresis System | ExpressCast 81-2025 gel box with integral buffer recirculation

The system is simple and self contained. A trapping system captures hydrogen bubbles created by electrolysis of the buffer at the cathode (-) end of the unit. As these bubbels move up the canted recirculation tube, they carry buffer along with them and provide a gentle and reliable recirculation system. This system is self regulating and no additional tubing or pumps are required.

  • Part number: NEB-81-2025 (system only), NEB-81-2025 -BEP (81-2025 with buffer exchange ports), NEB-81-2025R (81-2025 with integral buffer recirculation)
  • Typically ships withing 24-48 hours upon receipt of an order
  • Ships from Stoneham, MA
  • Country of Origin: USA
  • 4 year warranty
