UVP Mini UV Viewing Cabinets

UVP Analytik Jena Mini Chromato-Vue Viewing Cabinet

UVP Mini Chromato-Vue Viewing Cabinets provide a compact darkroom environment for viewing materials. All cabinets feature a contrast control filter that absorbs UV energy to protect the eyes. Each cabinet is designed to be used with specific UVP lamp models, which fit snugly on top of the cabinet.

Applications include:

  • Mineralogy
  • Lab Fluorescence
  • Sterilization
  • Field Investigation

Features:

  • Mini viewing cabinets are constructed with a metal base and plastic top
  • The bottom panel of the cabinet is removable
  • A contrast control filter absorbs UV energy to protect the eyes
  • Soft rubber viewport provides a comfortable viewing area with adequate space for eyeglasses
  • Lightweight access curtain blocks out external light from the cabinet interior

Cabinet Models:

  • The C-10 is designed for use with Compact and Handheld UV Lamps
  • The C-10P accommodates the Rechargeable Lamps, which are excellent for field use applications
  • The C-10E4 is designed for use with the 4-watt EL Series Lamps
  • The C-10E6 is designed for use with the 6-watt EL Series Lamps
  • The C-15G cabinet combines the C-10 cabinet with the UVGL-58 multi-band shortwave/longwave Handheld Lamp to provide a self-contained illumination system. Can also be used with the UVG-54 and UVGL55 Lamps

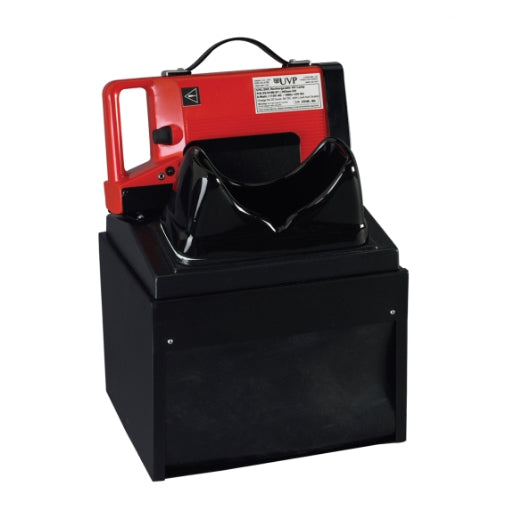

UVP Analytik Jena Mini Chromato-Vue Viewing Cabinet for Handheld Rechargeable/Portable UV Lamos
Specifications
Fabrication Metal Base, Plastic Top
Viewport Soft rubber with UV blocking contrast control filter
Curtain Lightweight materials block ambient light
Dimensions Cabinet Interior 9L X 10W X 7H in. (229 X 254 X 178 mm)
Dimensions Cabinet Exterior 9L X 10.5W X 12H in. (229 X 267 X 305 mm)
Weight 3.6 lb. (1.6 kg)

Ordering information

Part Number Model & Description
95-0072-01 C-10, Cabinet, Mini (for Compact/Handheld Lamps)
95-0072-02 C-10P, Cabinet, Portable (for Rechargeable Lamps)
95-0072-08 C-10E4, Cabinet, Mini (for four watt EL Lamps)
95-0072-09 C-10E6, Cabinet, Mini (for six watt EL Lamps)
95-0072-06 C-15G - 115 V, Cabinet (C-10) with 115 V Lamp, 6 watt, SW & LW
95-0072-07 C-15G - 230 V, Cabinet (C-10) with 230 V Lamp, 6 watt, SW & LW



Country of origin: USA
Ships from: California
Typically ships within 2-3 business days
Warranty: 1 year
