UVP Mini UV Lamps|Field Inspection|Analytik Jena


Model: UVG-4
Price:
Sale price$144.11

Contact Us

Description



Download a paper in regard to using the Analytik Jena CL-1000 UV crosslinker for disinfecting respirator masks here.

See a movie of the CL-1000 used for disinfecting respirator masks here.

International Ultraviolet Association (IUVA) fact sheet on Covid-19 here.

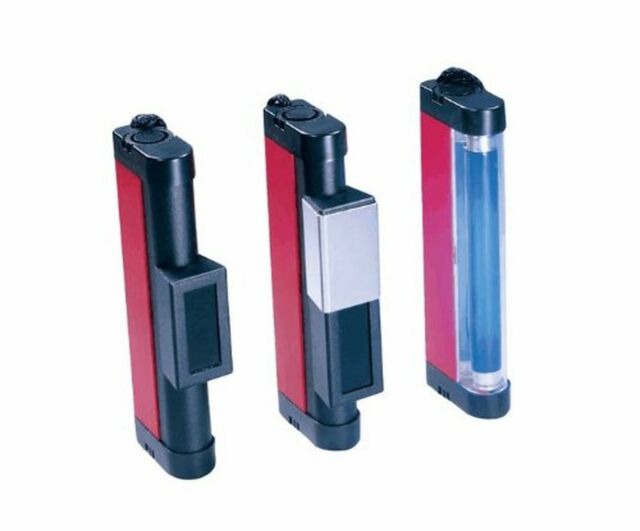

Mini four-watt UV Lamps are battery operated and are excellent as a portable lamp for field use. Manufactured of impact-resistant plastic which resists fading or cracking. Mini UV Lamps are small enough to fit in a pocket.

UVP Mini UV Lamps by Analytik Jena

Applications include

  • Field inspections
  • Industrial inspections
  • Laboratory
  • Lapidary
UVP Mini UV Lamp Shortwave

Specifications

UV Source: 254 nm, 365 nm, or combination 254/365 nm in the same lamp
4 watts per bulb
Power source: 4 AA batteries (not included)
Dimensions:
UVG-4, UVSL-14P, UVL-4: 6.25L x 1W x 2.2D in. (159 x 25 x 56 mm)
UVL-4F7.9L x 2W x 1.25D in. (201 x 51 x 32 mm)

Mini UV User Guide download

Ordering information


Part number, Model name and description
95-0158-04 - UVG4 - Mini UV Lamp, 254 nm
95-0188-02 UVSL-14P - Mini UV Lamp, 254/365 nm
95-0125-05UVL-4 - Mini UV Lamp, 365 nm

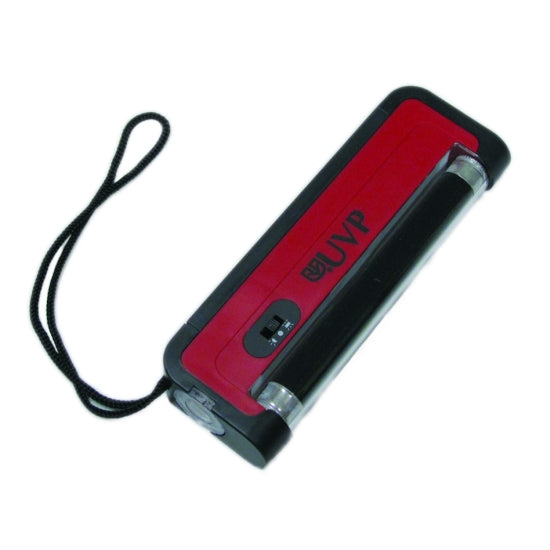

95-0305-03 - UVL-4F - Mini UV Lamp, 365 nm w/ flashlight

Country of origin: China
Ships from: California
Warranty: 1 year
Typically ships within one week upon receipt of order

  • UV Source: 254 nm, 365 nm, or combination 254/365 nm in the same lamp
  • 4 watts per bulb
  • Power source: 4 AA batteries (not included)
  • Dimensions:
  • UVG-4, UVSL-14P, UVL-4: 6.25L x 1W x 2.2D in. (159 x 25 x 56 mm)

    UVL-4F: 7.9L x 2W x 1.25D in. (201 x 51 x 32 mm)


  • Mini UV User Guide download

Ordering information

Part number, Model name and description

  • 95-0158-04 - UVG4 - Mini UV Lamp, 254 nm
  • 95-0188-02 - UVSL-14P - Mini UV Lamp, 254/365 nm
  • 95-0125-05 - UVL-4 - Mini UV Lamp, 365 nm
  • 95-0305-03 - UVL-4F - Mini UV Lamp, 365 nm w/ flashlight


  • Country of origin: China
  • Ships from: California
  • Warranty: 1 year
  • Typically ships within one week upon receipt of order
  • Shipping Cost: $15.00 USA, $95.00 HI, AK, and PR
  • Return Policy
