Do you work only with mini gels? Why pay more for a larger system? The compact and stylish UltraSlim UV transilluminator for mini gels represents a very nice value for the lab.

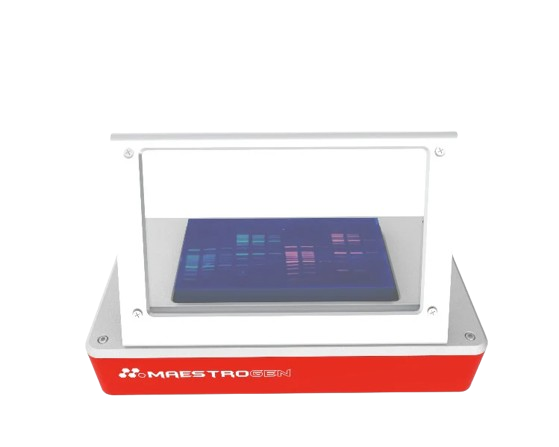

It is suitable for labs that use primarily Ethidium Bromide stained gels but can also be used with some of the newer "safe" stains such as SYBR Safe, MaestroSafe and GelGreen stain.

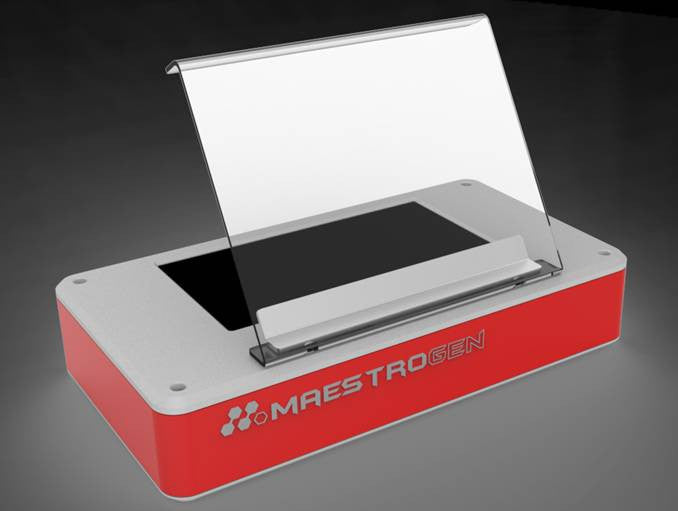

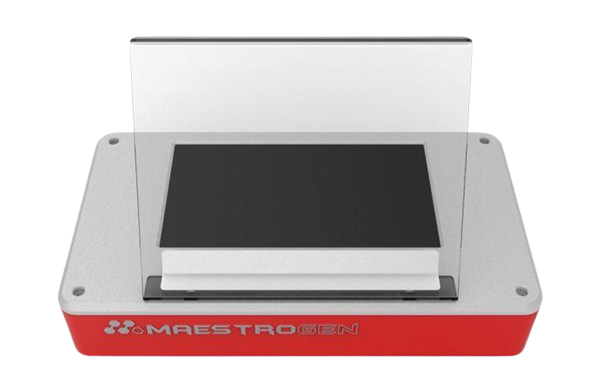

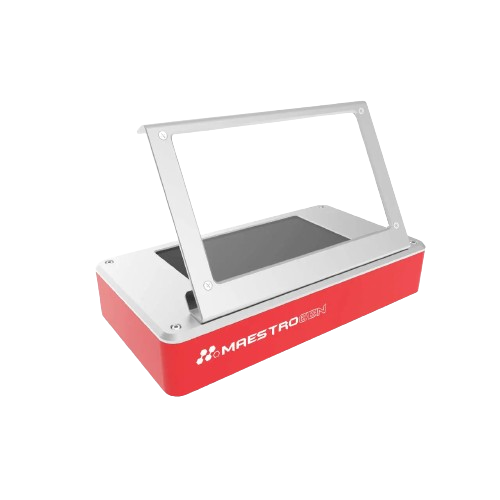

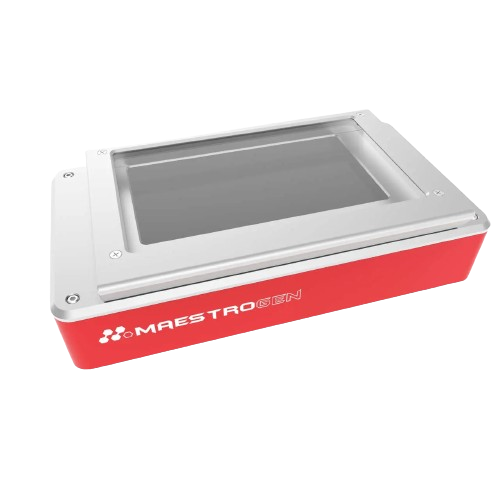

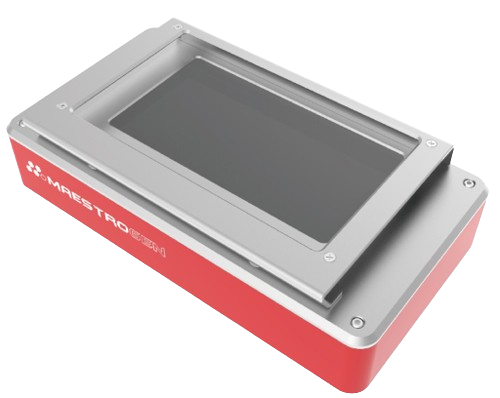

The UltraSlim UV has a 15cm x 8cm viewing area and an attached adjustable position UV blocking cover which offers easy access to the work surface area and is only 9 inches wide by 5 inches deep and just under 2 inches thick.

The UltraSlim UV carries a one year warranty.


  • Dimensions (cm): 24.7D x 13.2W x 4.85H
  • Viewing surface (mm): 15.0D x 8.0W
  • Wavelength (nm): 302
  • UV tubes: T5 6W UVB
  • Power: 12V - 1.5A
  • Weight (Kg): 1.4
  • Compatible gel type: mini gels
  • Compatible gel size (mm): 50*60, 105*60, 125*60
  • Temperature: operation 0~40 ℃, storage -10~70 ℃
  • Humidity: operation 20~80 %, storage 10~90 %

Product/SKU number:

  • NEB-UUV-01
