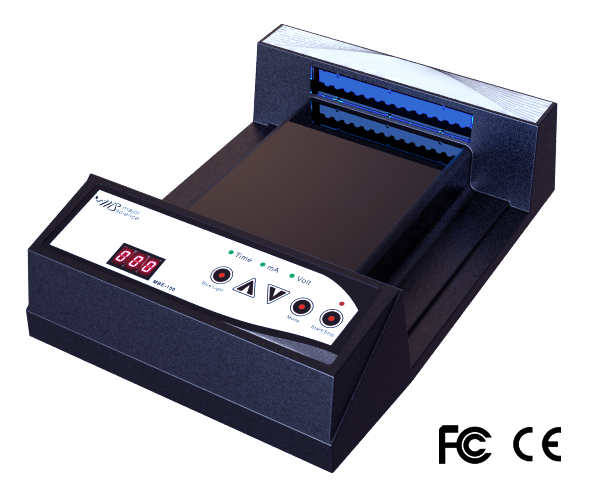

SafeBlue Illuminator and Power Supply

The innovative SafeBlue illuminator is an unit with combination of a small power supply with blue light illuminator. The system emits blue light which allows you to view your DNA/RNA bands without worrying about the harmful UV damage to your precious samples and eyes. SafeBlue illuminator could also be used as a simple blue light illuminator to cut your samples from gels.

  • Compatible with electrophoresis gel tank for the entire electrophoresis system

  • Entire ME15 gel tank can be fitted perfectly on top of viewing platform

  • Compatible with gel trays 15 x 15cm or smaller

  • Gel tank or UV tray can directly be placed on the viewing platform for gel observation

  • Optimized for blue-light specific nucleic acid stains, especially SYBR Gold, SYBR Green I/II, SYBR Safe, Midori Green Direct and Novel Juice.

  • Time saving with immediate visualization of DNA/RNA band migration

  • Blue light LEDs do not require UV safety equipment

  • Optional tray holders are available

Specifications:

Output Voltage:  10 – 150V / 1V
Output Current / Inc.:  10 – 300mA / 1mA
Max. Power: 30 W
Max. Power:  Constant Voltage or Current
Timer: 1 – 999 minutes with alarm, continuous
Safety Device: No Load Detection
Crossover: Yes
Blue Light Wavelength: 470 nm
Operating Temperature:  Ambient to 40℃
 Dimension Dimension:  (W x L x H )11.53"x 7.87" x 3.15" (293 x 200 x 80mm)
Weight:  Approx. 2.4 lb (1.1 kg)
Construction Material: Polycarbonate housing and aluminum base plate
Power Adapter:  Input: 100 – 240VAC, 50/60Hz, 1.4A/ Output: 15VDC, 4.0A, 60W max.

Combination with electrophoresis tank is also available

Combination with electrophoresis tank and dark room viewer is also available
