Name: Hermle Z216-2420 24 × 1.5/2.0 mL Centrifuge Rotor
Brand: Hermle
SKU: Z216-2420
Price: 878.27 USD
Availability: InStock

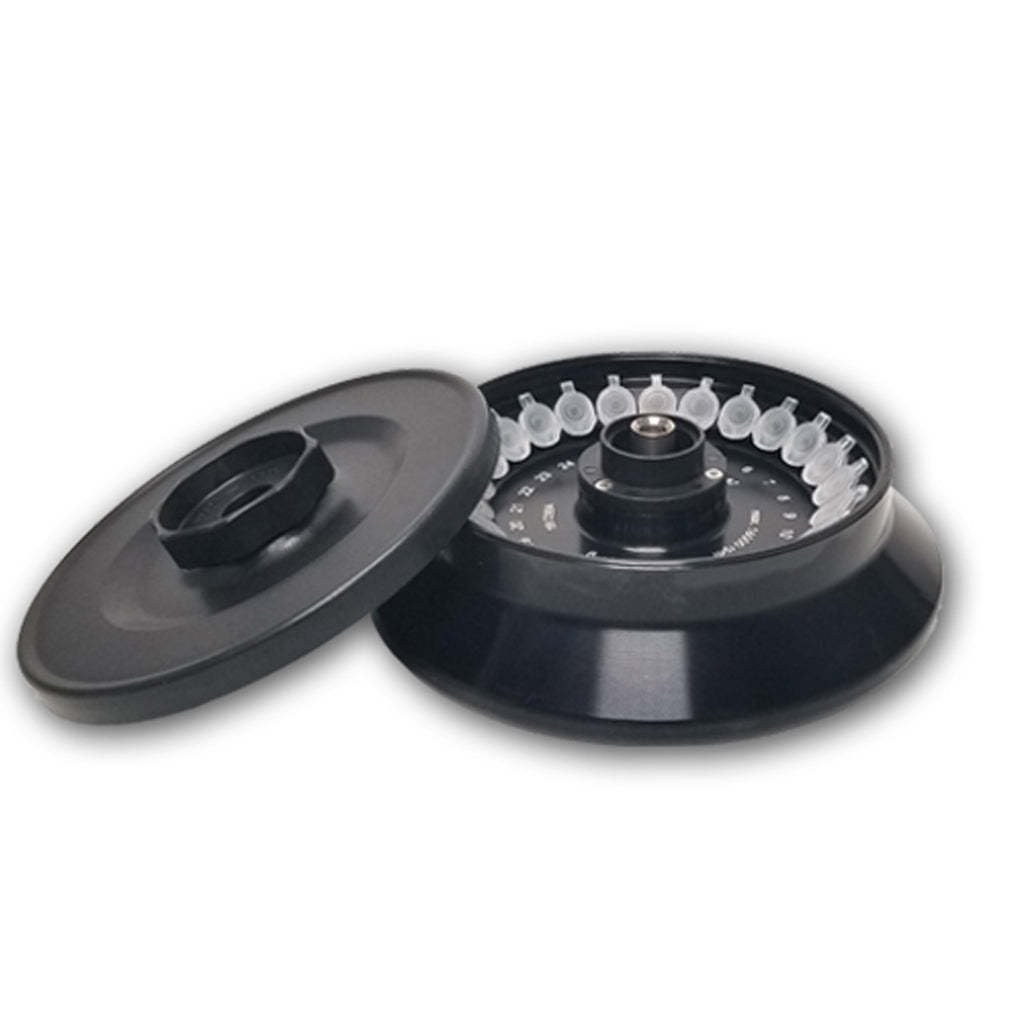

Hermle Z216-2420 24 × 1.5/2.0 mL Microcentrifuge Rotor

Roll over image to zoom in Click on image to zoom

The Hermle Z216-2420 is a 24-place fixed-angle centrifuge rotor designed for 1.5 mL and 2.0 mL microcentrifuge tubes. The rotor is hermetically sealable and is designed specifically for use with the Hermle Z216 centrifuge series.

Z216-2420 24-Place Centrifuge Rotor | Hermle Z216

With a 24-tube capacity, the Z216-2420 provides a dedicated rotor option for laboratories performing routine microcentrifugation of standard 1.5/2.0 mL tubes. The Hermle rotor documentation identifies a 45° rotor angle.

Tube & Adapter Compatibility

Tube Format	Tube Diameter	Maximum Length	Adapter
2.0 mL	11 mm	40 mm	None required
1.5 mL	11 mm	40 mm	None required
0.5 mL	8 mm	45 mm	C1008-A5-6
0.4/0.2 mL PCR	6 mm	45 mm	C1008-A2-6

Why Buy the Hermle Z216-2420 Rotor?

24-tube capacity: Accommodates up to 24 standard 1.5 mL or 2.0 mL microcentrifuge tubes.
Hermetically sealable design: Provides a sealed rotor configuration for compatible laboratory workflows.
Designed for the Z216 series: Purpose-built for compatible Hermle Z216 centrifuges.
Standard microtube format: A practical rotor for laboratories routinely processing 1.5 mL and 2.0 mL tubes.

Frequently Asked Questions

What tubes does the Hermle Z216-2420 rotor hold?
The Z216-2420 holds up to 24 standard 1.5 mL or 2.0 mL microcentrifuge tubes.

What is the maximum speed of the Z216-2420?
The maximum speed is 15,000 rpm.

What is the maximum RCF of the Z216-2420?
The rotor generates up to 21,379 × g.

Is the Z216-2420 hermetically sealable?
Yes. Hermle identifies the Z216-2420 as a hermetically sealable rotor.

Can smaller tubes be used with the Z216-2420?
Yes. Optional C1008-A5-6 adapters can be used for 0.5 mL tubes, and C1008-A2-6 adapters can be used for 0.4/0.2 mL PCR tubes.

Which centrifuges are compatible with the Z216-2420?
The Z216-2420 is designed for the Hermle Z216-M and Z216-MK centrifuges.

Technical Specifications

Part Number	Z216-2420
Rotor Type	Fixed-angle rotor
Capacity	24 × 1.5/2.0 mL
Rotor Angle	45°
Maximum Speed	15,000 rpm
Maximum RCF	21,379 × g
Maximum Radius	8.5 cm
Maximum Tube Diameter	11 mm
Acceleration	21 / 152 sec
Deceleration	18 / 173 sec
Temperature at Maximum Speed	6°C
Sealability	Hermetically sealable
Compatible Centrifuges	Hermle Z216-M and Z216-MK

Ships from: New Jersey, USA
Typically ships within 2-3 weeks
Two year warranty
CE certified
