Name: Benchmark PlateFuge 2D Digital Microplate Centrifuge
Brand: Benchmark Scientific
Price: 798.15 USD
Availability: InStock

C2006 Benchmark PlateFuge 2D C2006 Digital Microplate Centrifuge

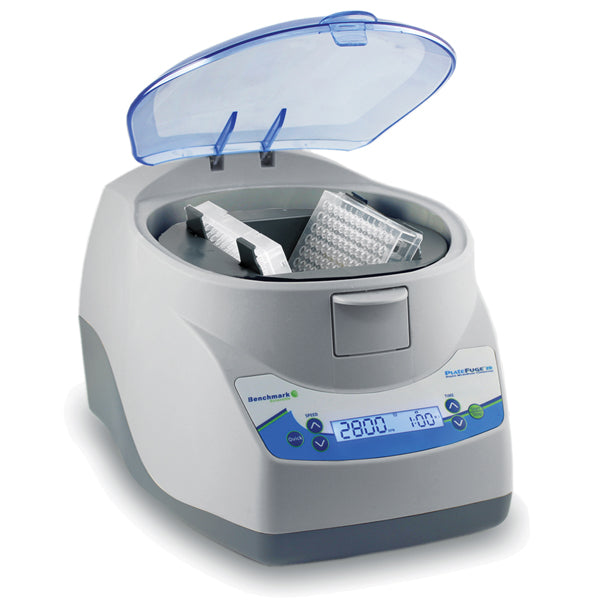

Benchmark PlateFuge 2D Digital Microplate Centrifuge

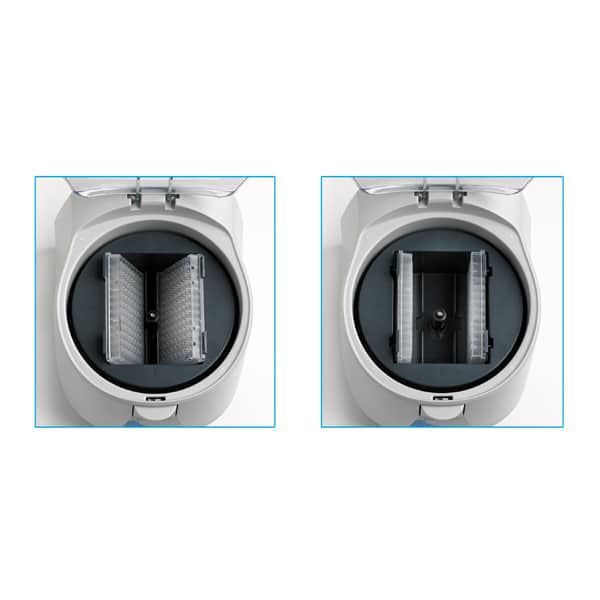

Top_view_of_Benchmark_PlateFuge centrifuge models

Roll over image to zoom in Click on image to zoom

Take greater control of plate spin-downs with the Benchmark PlateFuge 2D C2006 Digital Microplate Centrifuge. Adjustable speed from 500 to 2,800 rpm, digital run timing, and up to 728 × g let you select conditions for your protocol in a compact, dedicated plate centrifuge.

The included swing-out rotor holds two PCR plates or two microtiter plates. It accommodates popular skirted, semi-skirted, and non-skirted PCR plate designs and most microtiter plates, subject to fit—bringing useful flexibility to the bench where you prepare plate-based experiments.

Choose the speed. Set the duration.

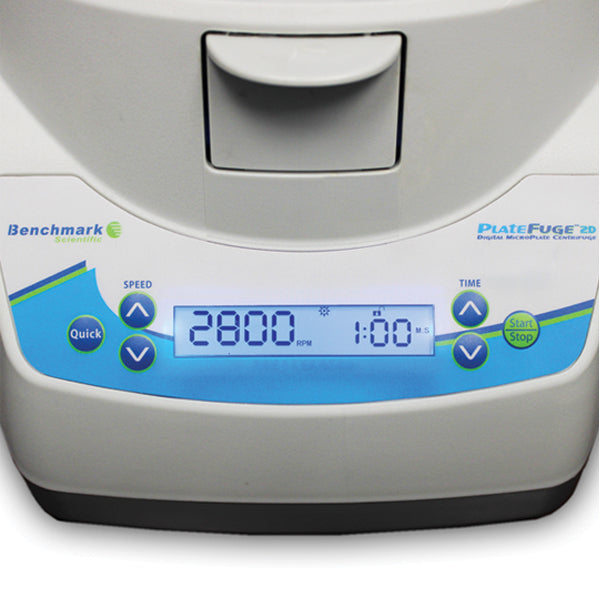

Digital controls let you define both how fast and how long the centrifuge runs. Select seconds, minutes, or continuous operation to suit the method. The angled plate carriers simplify loading, swing horizontally during centrifugation, and return to the loading position after electronic braking.

Key features for controlled plate processing

Variable-speed operation: 500–2,800 rpm with the standard rotor.
Digital timer: 0–59 seconds, 1–99 minutes, or continuous operation.
Two-plate configuration included: swing-out rotor and plate carriers.
Optional PCR tube/strip adapters: C2000-A02, sold separately.
Optional deep-well rotor: C2000-DWMP for compatible plates up to 35 mm tall, specified at 1,500 rpm.

The PlateFuge 2D is the choice within the PlateFuge range when you want adjustable speed and timed runs for different protocols. Confirm the fit of your labware and the operating limits of the installed rotor. The US C2006 uses 120V, 60 Hz power.

Adjustable speed and run time let laboratories set plate spin-down conditions for different protocols.
Digital timing supports repeated runs with a selected duration.
The included swing-out rotor provides a dedicated two-plate configuration.
Optional accessories extend the system to PCR tubes, strips and compatible deep-well plates.

How does the PlateFuge 2D differ from the C2000?

The C2006 adds digital speed and time settings, with an adjustable 500–2,800 rpm range. The C2000 runs at a fixed 2,550 rpm.

What is the plate capacity?

The standard configuration holds two PCR plates or two microtiter plates. Verify the fit of your specific labware before use.

Does it require separate accessories for PCR tubes and deep-well plates?

Yes. C2000-A02 tube/strip adapters and the C2000-DWMP deep-well rotor are optional accessories sold separately. The deep-well rotor supports plates up to 35 mm tall and is specified at 1,500 rpm.

What electrical supply does the US model use?

The US C2006 specification is 120V, 60 Hz. Confirm that this matches the electrical supply at your installation location.

Model / catalog number	PlateFuge 2D / C2006
Speed range with standard rotor	500–2,800 rpm
Maximum relative centrifugal force	728 × g with standard rotor
Timer	0–59 seconds; 1–99 minutes; continuous
Standard capacity	2 PCR plates or 2 microtiter plates
Control	Digital speed and time settings
Braking	Electronic
Included equipment	Swing-out rotor and plate carriers
Optional equipment	C2000-A02 tube/strip adapters; C2000-DWMP deep-well rotor, sold separately
Optional deep-well configuration	Plates up to 35 mm tall; rotor specified at 1,500 rpm
Weight	7 lb / 3 kg
US electrical configuration	120V, 60 Hz
Manufacturer warranty	2 years
