Boost Your Lab's Productivity with the AutoMATE™ 96 from Accuris Instruments

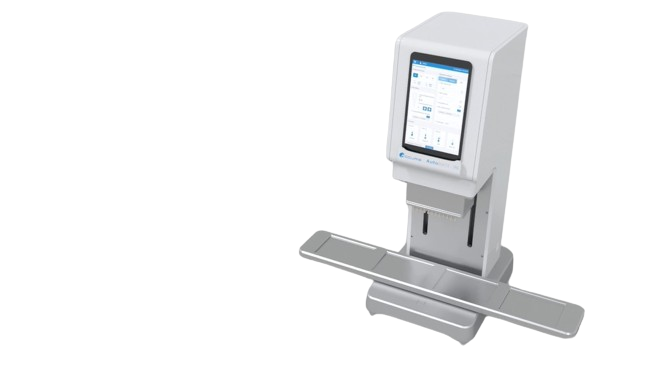

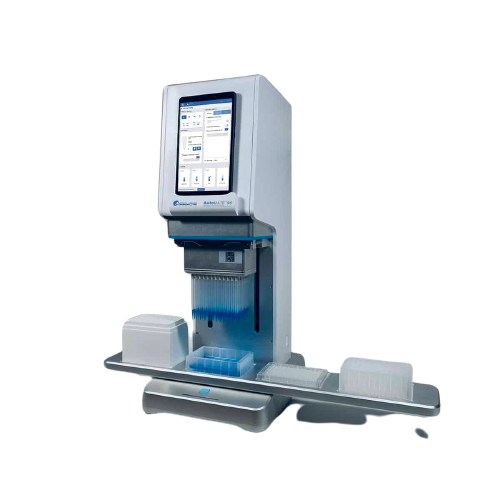

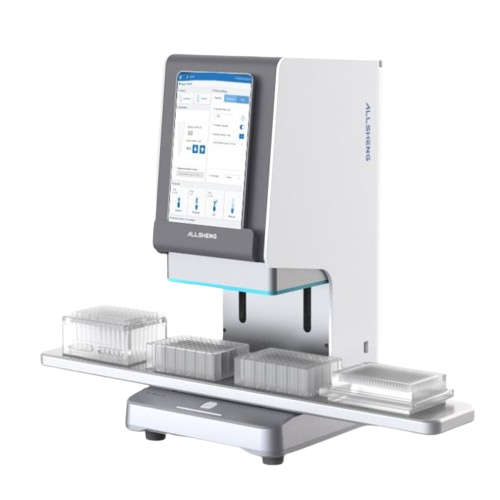

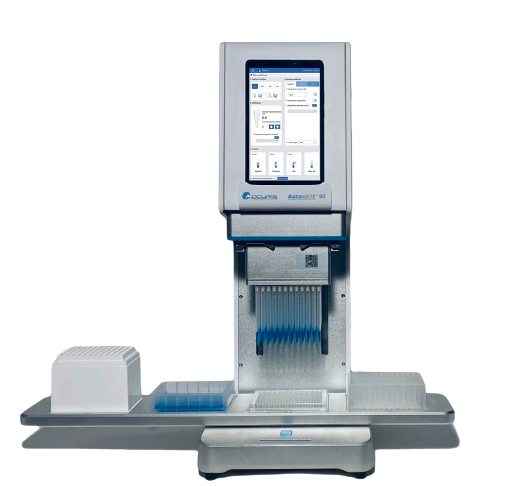

The AutoMATE™ 96 is a high-throughput, fully automated liquid handling workstation designed to streamline microplate filling and improve productivity in your lab. This 96-channel pipetting station can dispense up to 96 channels simultaneously, significantly reducing processing time and errors associated with manual pipetting.
Key Features:
Hands-Free Operation: Automated tip loading/ejection and a four-position sliding platform align tips with microplates/reservoirs, eliminating manual positioning.
Intuitive Tablet App: Program and operate the AutoMATE™ 96 with ease using the included tablet's user-friendly app.

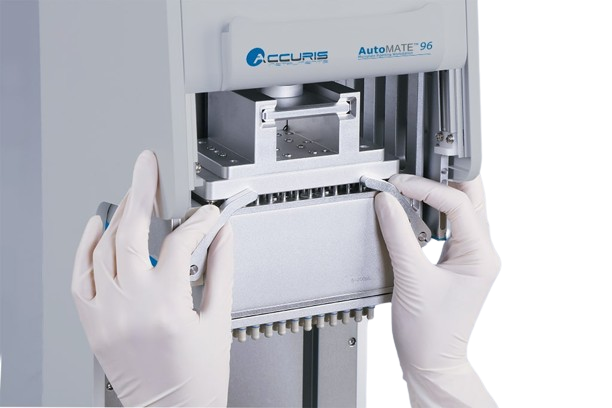

Versatile Pipetting Range: Three interchangeable heads accommodate pipetting volumes from 1.0µL to 1000µL.
Compact Design: Fits onto standard lab benches or biosafety cabinets, maximizing workspace efficiency.
Experience the convenience of unattended protocol execution with the AutoMATE™ 96. Once programmed, the instrument runs protocols to completion without manual intervention, freeing you to focus on other tasks.
Upgrade your microplate filling process today with the AutoMATE™ 96 from Accuris Instruments. Contact us to learn more about this high-throughput liquid handling solution.
Pipetting Modes:
Standard Pipetting: Aspirating and dispensing reagents by hand is labor-intensive and error prone. With the AutoMATE 96, reagents can be aspirated and dispensed automatically, ensuring accurate and precise transfer to and from microplates or reservoirs.
Multi-Dispensing (Repeat Pipetting): Continually filling microplates is a time-consuming process that can often result in hand fatigue. With the Multi-Dispensing function, repeatedly filling microplates can be automated and accomplished quickly without introducing hand strain or fatigue.
Secondary-Dispensing (Plate Filling): Many protocols and applications call for filling a plate with multiple samples or reagents. With the AutoMATE 96, multiple reagents can be aspirated and dispensed into the same microplate. For improved results, each dispense can be programmed to be include a mixing step.
Serial Dilutions: Performing serial dilutions via manual methods is labor-intensive and error prone. Errors in this process will amplify subsequent dilutions as the process continues. With the AutoMATE 96, serial dilutions can be performed automatically and error free.
Mixing: Mixing reagents by hand is strenuous and can be inconsistent. With the AutoMATE 96, mixing can be performed automatically with adjustable speeds, ensuring consistency.
Reverse Pipetting: When the accuracy of pipetting volume is critical, the AutoMATE 96 can be set to reverse pipetting mode. This technique greatly improves accuracy &precision with small volumes of biological fluids.
Software and Programming:
Two operating modes are available and can be selected per the user’s preference.
Manual Mode: Perform operations quickly & efficiently simply by selecting each function individually.
Automated Program Mode: Create a protocol made up of multiple steps in succession. This interface allows for complex protocols to be run from tip-loading through completion with the touch of a button.
Programmable steps: • Load/Eject Tips • Aspirate/Dispense reagents • Perform serial dilutions • Rinse tips • Repeat a cycle • Pause after a certain step
Broad Labware Compatibility: All brands of microplates and reservoirs meeting SLAS/ANSI formats are compatible for use with the AutoMATE 96. Included plate adapters allow 384 well microplates and PCR plates to be used.
Fully Automated Tip Loading and Ejection: Motorized tip loading and ejection provides handsfree, consistent tip loading throughout all 96 wells.
Display: 8-inch color touch screen tablet (included) Aspirate/Dispense volume : 1-1000µl (depending on pipetting Platform capacity: 4 (tip racks/plates/reservoirs) Channels: 96 individual pistons Pipetting technology: Air Displacement Compatible plate formats: 96/384 well microplates, shallow/deep well plates, PCR plates Communication Ports: USB Ports for importing/exporting Voltage Input: Universal 120 to 240VAC, 50-60Hz Power: 100W Weight: 32.6 kg / 71.8 lbs Dimensions: 69.0 x 35.0 x 67.3 cm / 27.2 x 13.8 x 26.5 in.

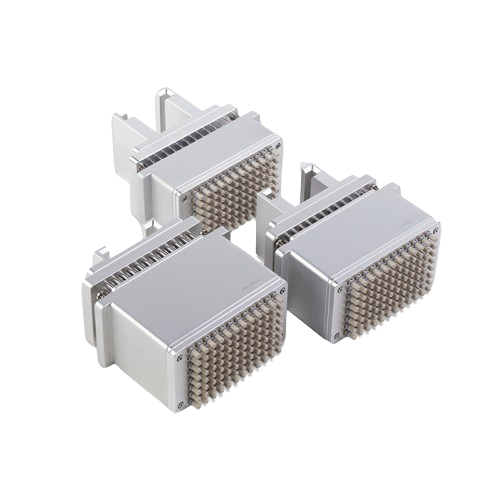

Pipetting Head Specifications
MP9600-20PH (1-20µL)
MP9600-200PH (5-200µL)
MP9600-1000PH (100-1000µL)
Accuracy
≤12 % at 1μL ≤5 % at 2 μL ≤1 % at 10μL ≤1 % at 20μL
≤5 % at 5μL ≤2 % at 20μL ≤1 % at 100μL ≤1 % at 200μL
≤2.5 % at 100μL ≤0.4 % at 500μL ≤1 % at 1000μL
Precision
≤120% at 1μL ≤5 % at 2 μL ≤1 % at 10μL ≤0.8 % at 20μL
≤3.5 % at 5μL ≤1.5 % at 20μL ≤0.8 % at 100μL ≤0.4 % at 200μL
≤1.25 % at 100μL ≤0.4 % at 500μL ≤0.4 % at 1000μL
Ordering information
Catalog number: MP9604
Country of origin: China
Ships from: New Jersey
Typically ships within 2-4 days upon receipt of an order
