Accuris Smart Blue Mini | Blue Light Transilluminator

Special offer! Free shipping through June 30, 2021.

The Accuris SmartBlue Mini Blue Light Transilluminator has been developed for viewing DNA gels stained with new, safe fluorescent dyes. These new dyes, such as SmartGlow, SYBR Green, MaestroSafe, Gel Green, have an excitation wavelength of 465-470nm (visible blue light), and are safer to use than Ethidium Bromide.

Accuris SmartBlue Mini Blue Light Transilluminator
Features
  • Blue light, safe for nucleic acids
  • Uniform illumination (UI Technology)
  • Optimal wavelength (465nm) for common safe stains
  • Easily removable, two position amber filter cover
  • Optional amber viewing glasses: E4000-VG1

Safer for samples, safer for you: Accuris SmartBlue Mini Transilluminators are the perfect partner for the most common safe DNA stains. It emits blue light at a wavelength of 465nm, perfect for excitation of most green fluorophors, including Accuris SYBR Green, MaestroSafe, SYBR Safe, SYBR Gold, GelStar, GelGreen, to name a few.  The SmartBlue can also works for excitation of EtBr (though fluorescence is not as bright as with UV), see our Technical Bulletin with sample images.   Exposing DNA to blue wavelength does not cause molecular damage, and results in a much higher downstream cloning efficiency as compared to even short UV light exposures.  In addition, the visible blue light is not damaging to the user’s skin and is less harmful to the eyes.*

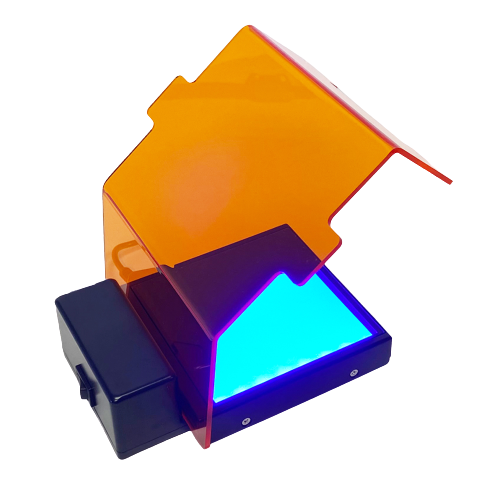

Two position filter cover:  The SmartBlue Mini comes with an emission filter cover. The amber cover, which rests above the viewing surface and gel, filter out the blue light, allowing the fluorescent DNA bands to be seen clearly.  The cover is designed to fit flat for general gel viewing or to be placed at an angle to provide easy access to the gel for band excision. For documentation, the filter cover is easily removed completely.

Optional amber viewing glassesViewing Glasses offer efficient blocking of the blue light wavelength from the transilluminators, allowing clear visualization of the fluorescing DNA bands without the filter cover in place.  These convenient glasses are recommended for users that are frequently excising DNA bands from gels.

UI technology, bright and clear images:  The bright LED light plates and filter layer provides an extremely evenly lit viewing surface. Even in ambient light, bands of DNA can clearly be seen in stained gels. Images obtained using the SmartBlue Mini Transilluminator is bright and balanced.


Reliable, durable and long lasting:  An array of super bright LEDs with a long, 30,000 hour service life provide the light source for the SmartBlue Mini Transilluminator. Unlike those in a UV transilluminator, the filters in the SmartBlue systems will not solarize and degrade in performance over time.

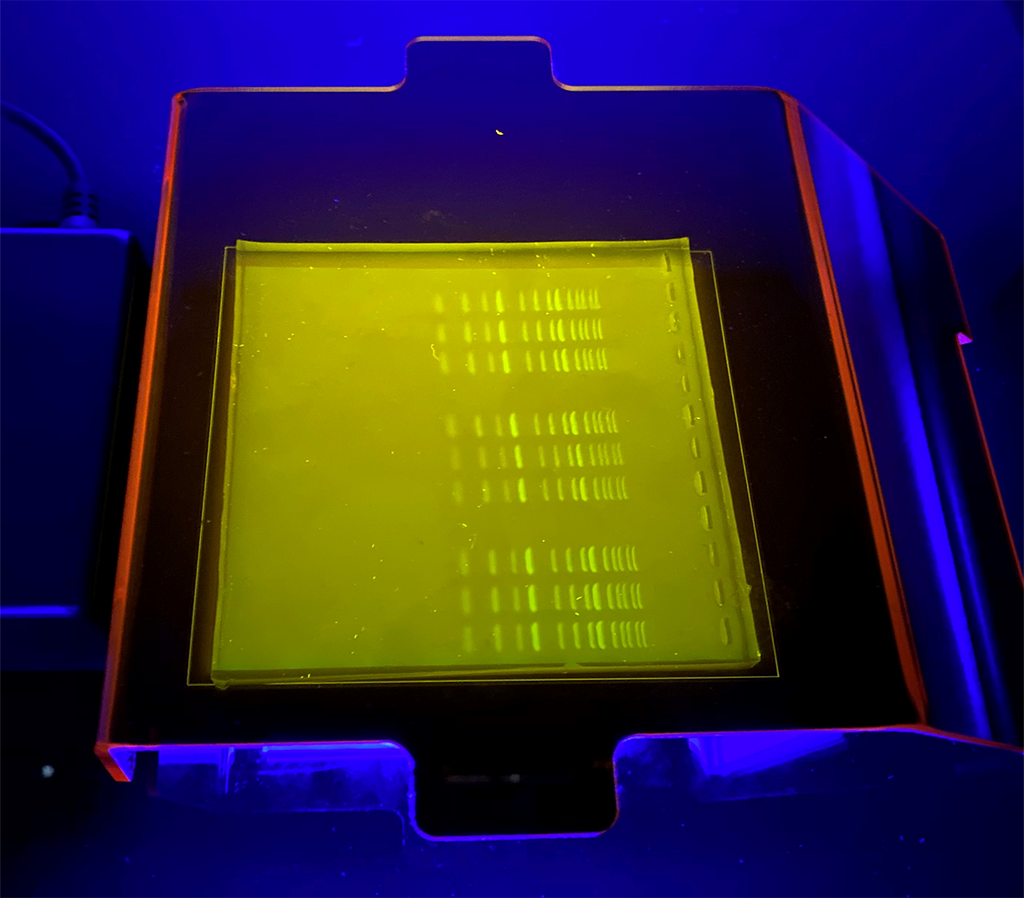

Gel band excision on a SmartBlue Mini Blue Light Transilluminator
Gel bands can be excised directly on the scratch resistant, glass viewing surfaces. To save energy, the power switch includes an automatic 5 minute shutoff. SmartBlue Transilluminators are covered by a 2 year warranty.
Specifications
Light Source: High Intensity Blue LEDs
Emission Filter Cover: Amber
Wavelength: Peak at 465 nm
E4100 Viewing Surface 10.5 x 10.5 cm
E4100 Ext. Dimensions 17 x 12 x 5 cm
Electrical: 110V (230 V available. Please inquire)
Weight: 1.2kg / 2.6lbs
Warranty: 2 years

 Accuris SmartBlue Mini blue light transilluminator accessories

Ordering information

Part number: NEB-E4100
Typically ships within 48 hours upon receipt of an order
Country of Origin: USA
Ships from New JerseyTwo year warranty

Return policy: here

Documents

Accuris SmartBlue flyer: here
Accuris SmartBlue user manual: here

Technical Bulletin: DNA Staining and Imaging
